Description

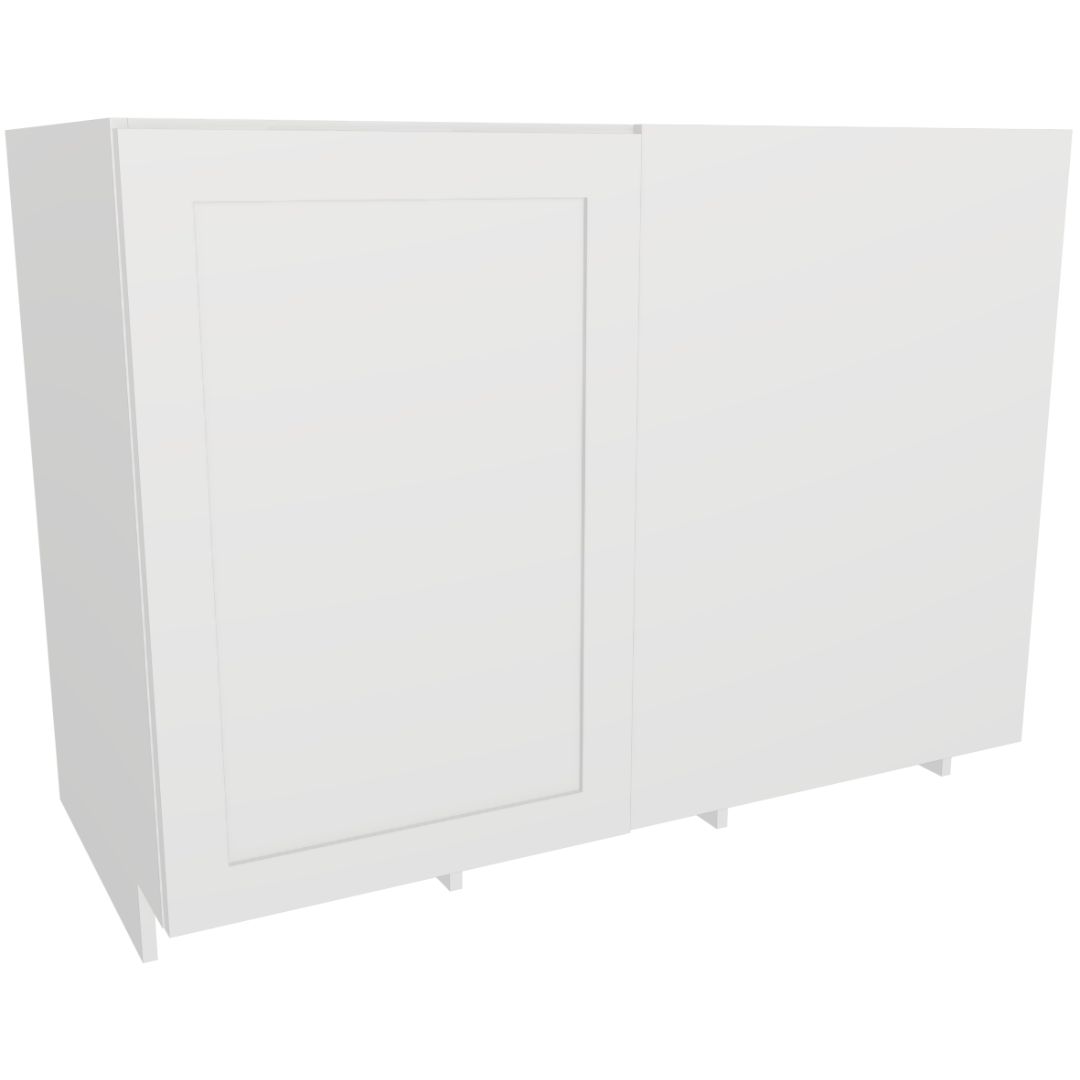

Right-hand blind-corner base with a 23 7/8 inch finished blind panel on the right and a full-height door on the opposite side. One adjustable shelf is included as standard.

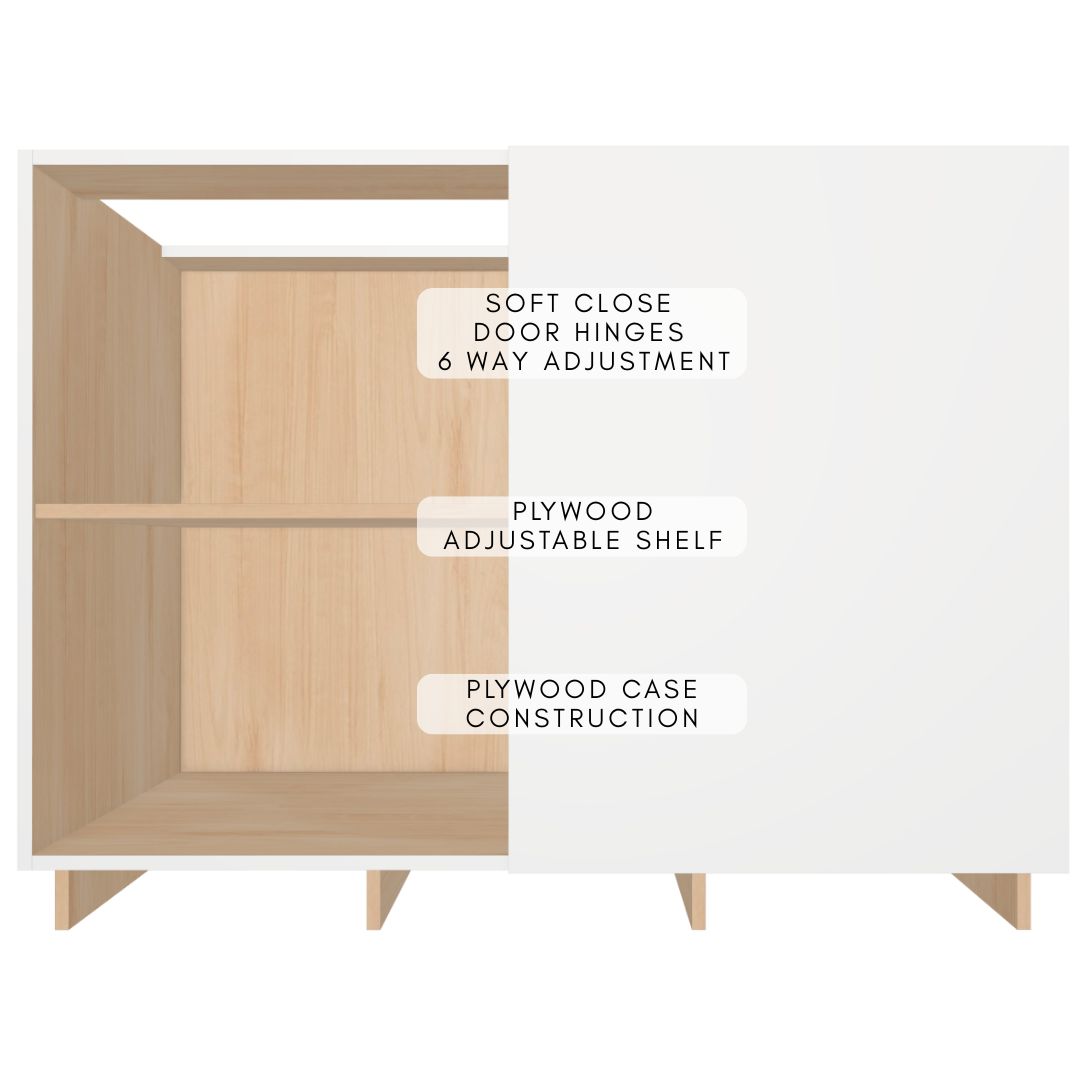

Standard case and shelf construction is 5/8 inch white melamine, with a UV-prefinished plywood upgrade available. The blind panel is UV2 plywood, finished on one face; with birch doors it is stained to match. Concealed soft-close blind-corner hinges are included.

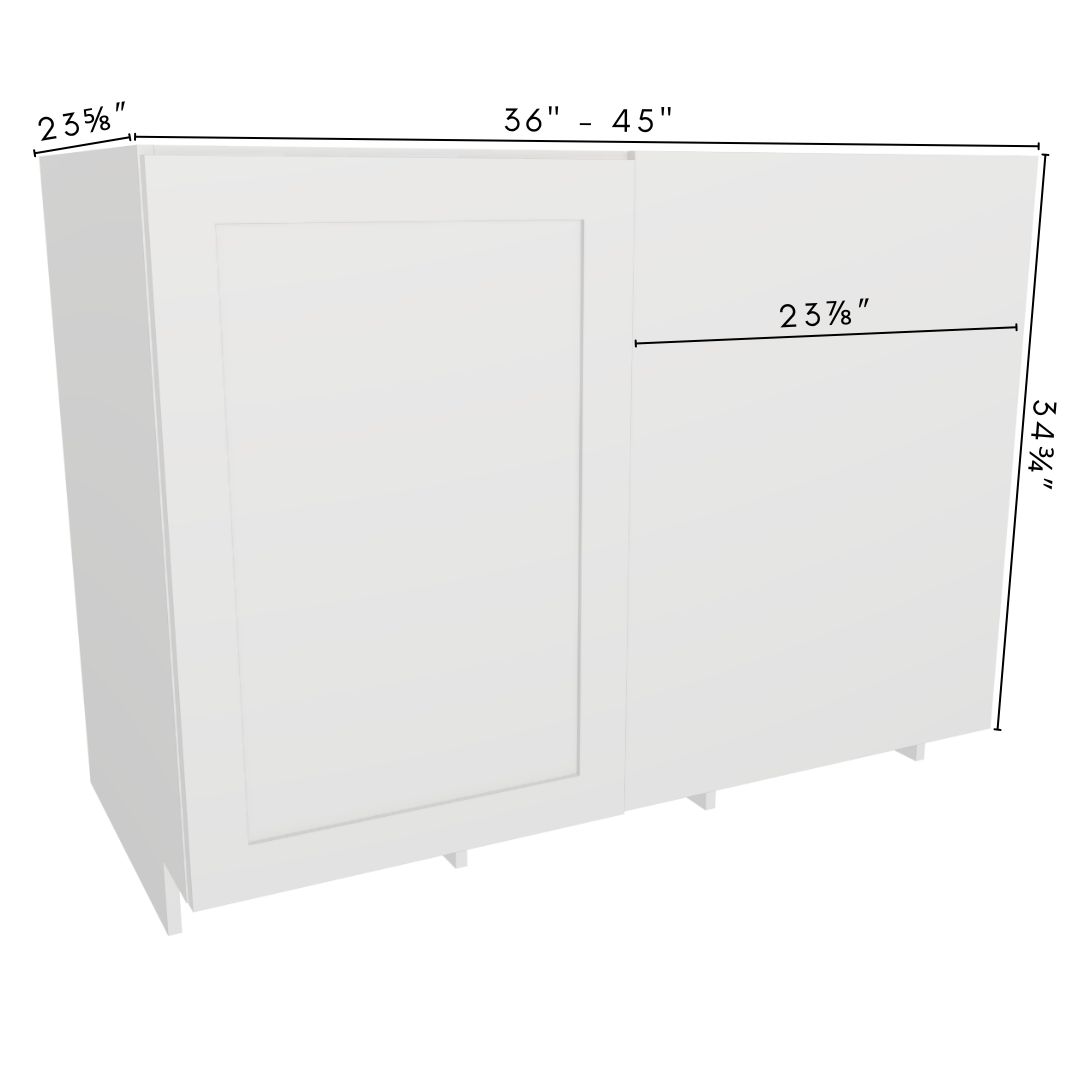

Width: 33-47 inches in 1/8 inch increments. Height: 34 3/4 inches. Standard case depth: 23 5/8 inches; custom depths: 18-24 inches. Toe kick: 3 3/4 inches high.
Install at least 3 inches from the right wall for door opening and corner access. Check adjoining cabinets and handles during layout.
LeMans is offered at widths 43-47 inches with standard depth and replaces the adjustable shelf. Choose fully assembled or flat-packed; flat-packed cabinets require complete customer assembly and hardware attachment.
Exposed ends are unfinished and show assembly marks; order an applied end panel separately where needed.
